Overview

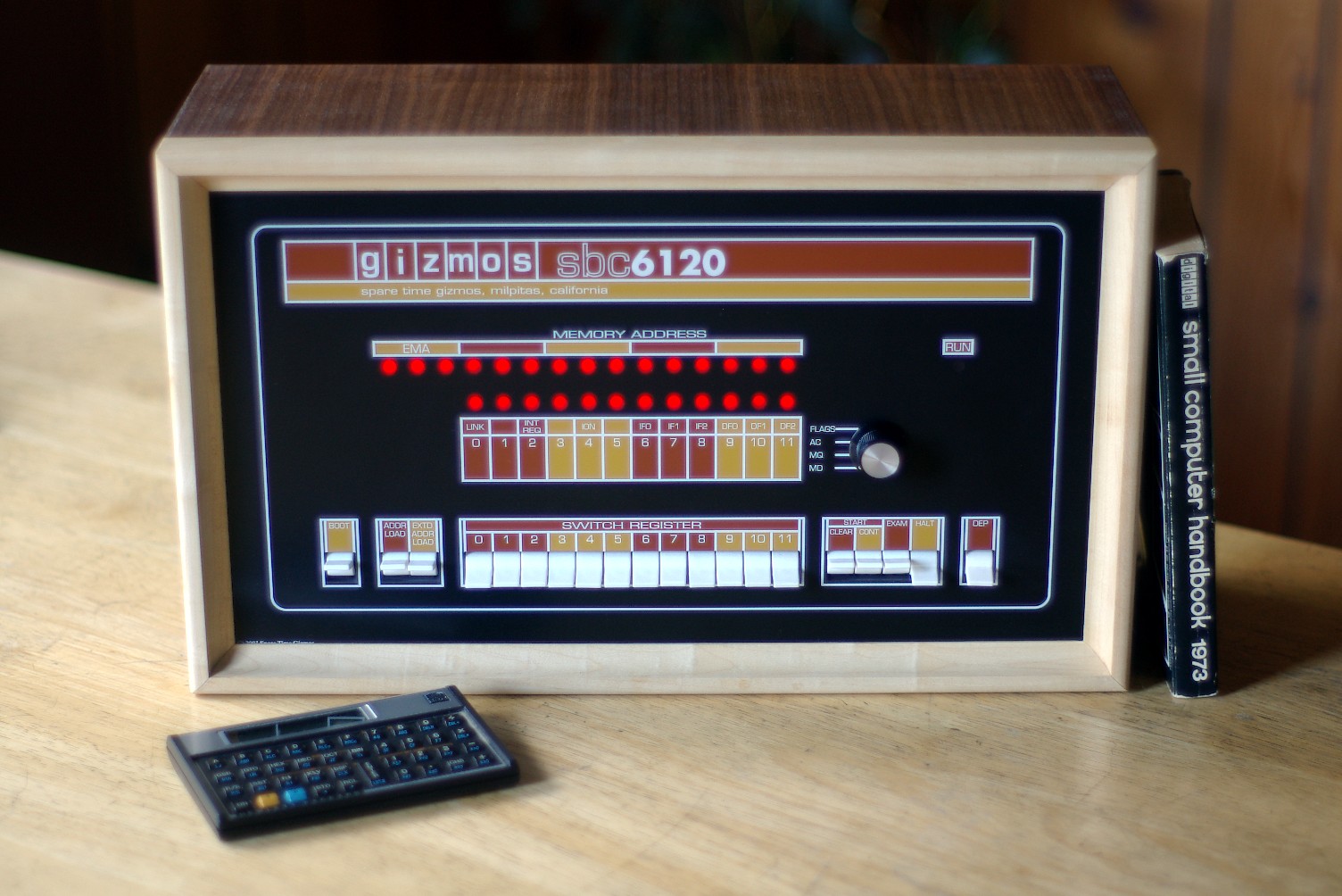

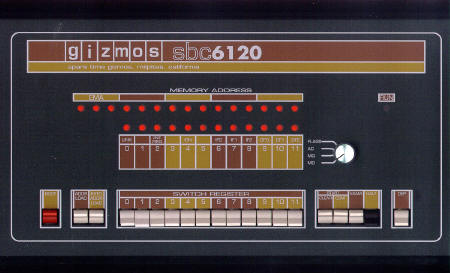

The SBC6120 exhibited at VCF/EuropeThe SBC6120 Model 2 is a conventional single board computer with the typical complement of EPROM, RAM, a RS232 serial port, an IDE disk interface, and an optional non-volatile RAM disk memory card. What makes it unique is that the CPU is the Harris HD-6120 PDP-8 on a chip. The 6120 is the second generation of single chip PDP-8 compatible microprocessors and was used in Digital's DECmate-I, II, III and III+ "personal" computers.

The SBC6120 can run all standard DEC paper tape software, such as FOCAL-69, with no changes. Simply use the ROM firmware on the SBC6120 to download FOCAL69.BIN from a PC connected to the console port (or use a real ASR-33 and read the real FOCAL-69 paper tape, if youíre so inclined!), start at 2008, and youíre running.

OS/278, OS/78 and, yes - OS/8 V3D or V3S - can all be booted on the SBC6120 using either RAM disk or IDE disk as mass storage devices. Since the console interface in the SBC6120 is KL8E compatible and does not use a HD-6121, there is no particular need to use OS/278 and real OS/8 V3D runs perfectly well.

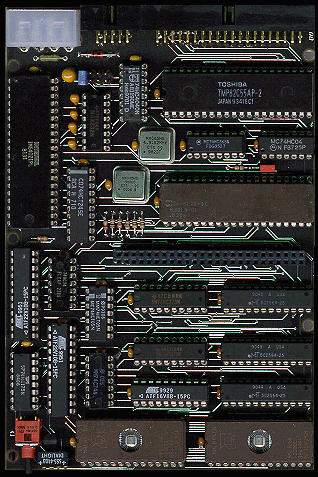

SBC6120 next to a standard 3.5" IDE driveThe SBC6120 measures just 4.2 inches by 6.2 inches, or roughly the same size and shape as a standard 3Ĺ" disk drive. A four layer PC board with internal power planes was needed to fit all the parts in this space. A complete SBC6120 requires just 175mA at 5V to operate, and this requirement can easily be cut in half by omitting the LED POST code display. Imagine - you can have an entire PDP-8, running OS/8 from a RAM disk, thatís the size of a paperback book and runs on less than half a watt!

Hardware

The features of the HD-6120 CPU include:

bullet

A completely PDP-8/E compatible instruction set

bullet

Built in KM8E compatible memory management

bullet

A separate 32KW control panel memory for a bootstrap/monitor

To this the SBC6120 adds:

bullet

64K twelve bit words of RAM - 32KW for panel memory and 32KW for conventional memory.

bullet

32KW of EPROM which contains the BTS6120 firmware.

bullet

An optional RAM disk card containing up to 2Mb of eight bit of battery backed up, non-volatile SRAM.

bullet

A memory management system that controls the mapping of RAM, EPROM and RAM disk into the panel memory space.

bullet

A real, straight-8 compatible console terminal interface. The logic for this interface is implemented in a GAL - no 6121 is used and no software emulation is required.

bullet

An IDE/ATA disk interface.

bullet

A four LED display used to show POST error codes.

Diagram showing the hardware architecture of the SBC6120

Software

The 32KW EPROM contains the BTS6120 firmware, which has these features:

bullet

A power on self test (POST) of the SBC6120 hardware, including the CPU, a memory test for EPROM, RAM and RAM disk, and a test of all peripheral devices.

bullet

Commands to examine and change main memory or panel memory, plus commands to clear memory, move memory blocks, compute checksums, perform word searches, etc.

bullet

Commands to examine and modify all 6120 registers.

bullet

The ability to set break points in main memory programs, and to execute single instructions and generate instruction traces.

bullet

A BIN format loader for loading paper tape images through the console port.

bullet

RAM disk I/O functions to assist the OS/8 VM01 handler.

bullet

IDE disk I/O functions to assist the OS/8 ID01 handler.

bullet

Commands to upload and download both RAM and IDE disk over the serial port.

bullet

An OS/8 bootstrap for both RAM and IDE disk.

A diagram of the SBC6120 software architecture

Historical Notes

As a historical note, the BTS6120 software started life in 1983 as a bootstrap program for an elaborate Intersil IM6100 system I had planned. The software was developed and tested on a 6100 emulator that I wrote to run on a DECsystem-10, but it never saw any actual hardware. Although I built several simpler 6100 based systems, the one intended for this software proved to be too complex and was never built.

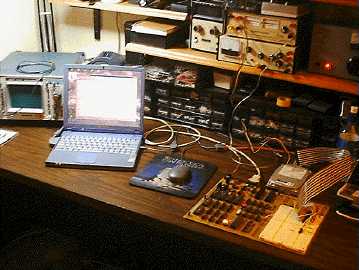

A photograph of the SBC6120 Model 1 on the workbenchNever built, that is, until 1999 when I rescued some 6120 parts from a dead DECmate and decided that, with cheap SRAMs for mass storage and modern GALS instead of discrete TTL to build a console interface, it was time. That, and about six weeks of work designing the hardware and laying out the PC board, and another two months or so of hacking the BTS6120 software to work in this new environment and the SBC6120 Model 1 first ran FOCAL-69 early in 2000.

The Model 1 was a useful platform for writing the firmware and device handler to make OS/8 work with the RAM disk, and later for developing and testing the IDE interface and writing the software for that. The Model 1 was too big and clunky, however, and I wanted something that I could fit into a small cabinet along with a hard disk. That, and another few months of designing on weekends and in the evening, gave us the Model 2 that you are reading about now.

Licensing

All SBC6120 files are Copyright (C) 2001-2003 by Spare Time Gizmos.

All SBC6120 documentation files including the schematics and the SBC6120 User's Guide, are covered under the terms of the GNU Free Documentation License. Permission is granted to copy, distribute and/or modify these files under the terms of the GNU Free Documentation License, Version 1.1 published by the Free Software Foundation; with no invariant sections; with the front cover text "Portions Copyright (C) 2001-2003 by Spare Time Gizmos" and our URL, and with no back cover text.

All SBC6120 software and firmware including, but not limited to, BTS6120, PALX, GAL programming, and the VM01/ID01 handlers, are covered under under the terms of the GNU General Public License. Permission is granted to copy, distribute and/or modify these files under the terms of the GNU General Public License as published by the Free Software Foundation, version 2.

In general, these licenses will allow you to use the SBC6120 design for any purpose you choose, including to create derivative works.  If you choose to distribute the SBC6120 design or a derivative, then you must make your distribution, including source files, free to anyone.
